VEITH Needle Plates (STOLK)

The advanced clamping tool for multiple plies

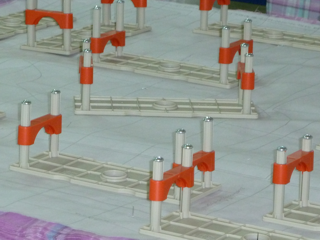

VEITH Needle Plate STOLK

A very useful tool to be used in the cutting room — stabilizing multiple layers of fabric during cutting or transportation. The needle plates are a clever alternative to classic clamps with some important advantages.

The Problem

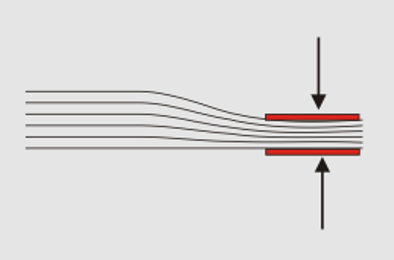

Common clamp problem
  • A pile of several layers of fabric typically tend to shift
  • Traditional clamps can hold the pile just at the edge, but not inside the lay package
  • Traditional clamps press the pile with the consequence that layers shift slightly close to the clamp
  • The quality of the cut pieces is not accurate
  • Cutting itself takes more time

Alternative Concept

Concept: top pin

The Solution

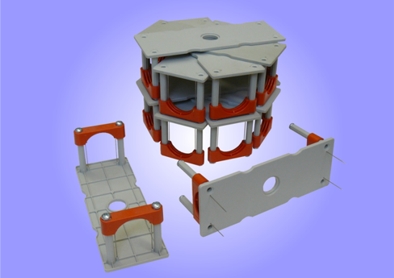

VEITH Needle Plate
  • The VEITH Needle Plate is a clamping tool with pins coming from the top
  • 2 bridges (red) holding each 2 pins(*) and sliding up and down a guide
  • A clever design makes sure that presently not used Needle Plates can be stored in an easy to handle tower

Advantages

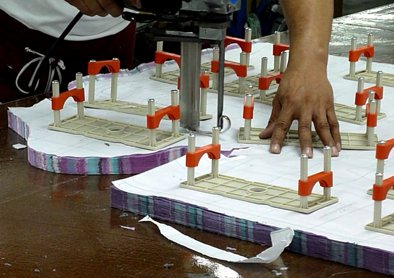

VEITH Needle plates holding patterns
  • No pressure on the fabric, consequence no shifting of the plies
  • Protect the lay package also in the centre area of the lay package
  • Easy and fast to handle
  • Improve your quality

In Use

A useful tool for manual cutting

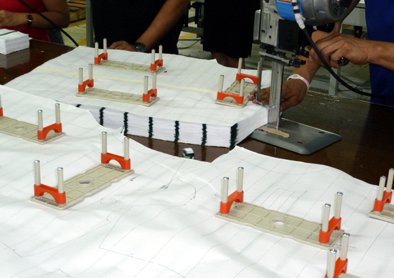

STOLK usage while cutting manual

manual cutting

Automatic cutting

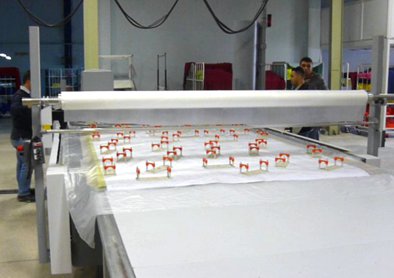

STOLK usage transportation to cutter

moving the lay package

During cutting

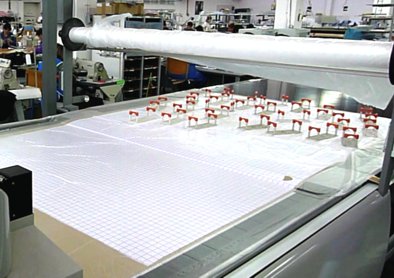

STOLK usage in non-vacuum area outside cutter window

outside cutting window

Specification

Pin dimensions

  • pin length: 45mm
  • pin diameter: 1mm

The VEITH Needle plates and the spare needles are available in the following packing units:

VEITH Needle Plates

12 pieces per pack, article no: STOLK

VEITH Spare Needles for STOLK

10 pieces per pack, article no: ENSTO

Solutions for Special Applications

  • VEITH PinIT Software — support for the VEITH PIN-TABLEs for woven fabrics as well as for tubular knitted fabrics
