VEITH Pin Table for flat knitted fabrics
Improved spreading and matching of flat knitted fabrics in multiple plies
VEITH SYSTEM — the specialist for matching fabrics in garment manufacturing — offers a system particularly designed in order to support and to allow the spreading and matching of flat knitted fabrics in multiple plies.
The Problem
- Horizontal stripe patterns need to be aligned horizontal and matched
- Vertical cable patterns need to be centered and spread symmetrically
- Single pieces are cut manually in order to achieve the matching in horizontal and vertical direction
- The operators doing the matching need to be skilled and well trained
- Slow operation
- Maintaining an equal and high quality level is difficult
The Solution

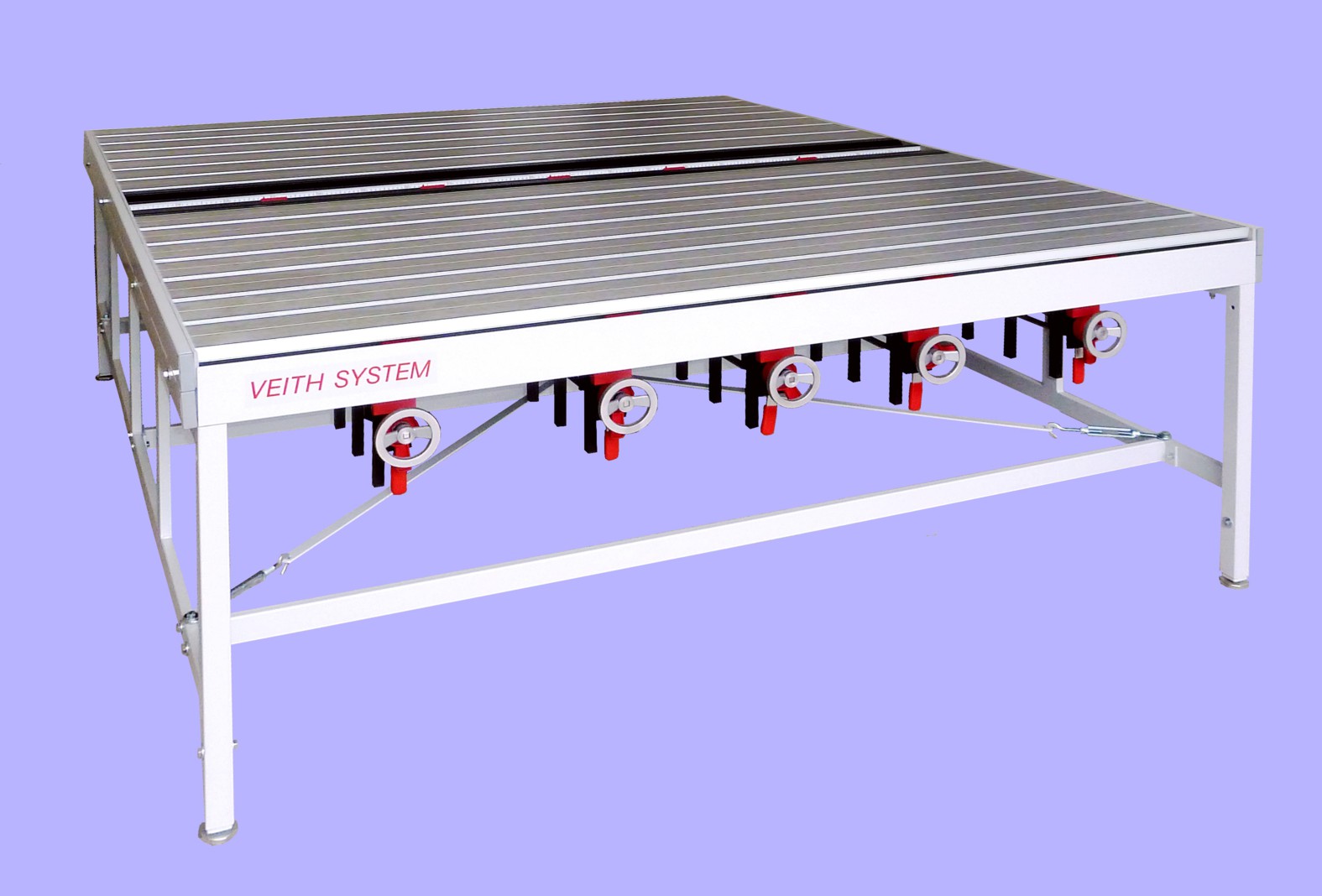

VEITH Pin Table
for flat knitted fabric
DUO version
(2 independent workplaces in one system)
- This particular VEITH Pin Table for flat knitted fabrics is based on the standard model of the VEITH Pin TABLE used for woven fabrics.
- It has a lengthwise slotted aluminum top.
- The pins are positioned inside the slots.
- The pins are carried by needle bars underneath the table top going across the table and creating always a line of pins.
- The design of the VEITH Pin Table allows to position the needle bars lengthwise at any required position without any limitation of a grid.
- A gear-rack mechanic makes sure that the needle bars will be always positioned perpendicular.
- Once a needle bar is set to a particular position it can be fixed to this position by a brake mechanism.

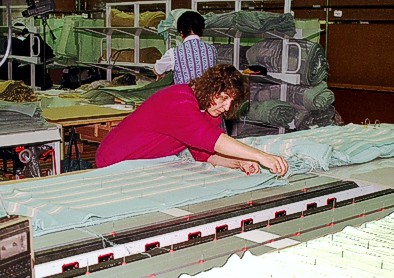

- The needle bar positions can be adjusted, even when spreading and matching of the fabric has already started. This allows to overcome problems with too much tension or with too much looseness.
- The height of the pins can be adjusted by turning a hand-wheel. So spreading and pinning the fabric becomes easy, convenient and fast. It avoids tension in the lay package.
- Each pin can be individually locked down, i.e. only the minimum needed quantity of pins have to be used.
- VEITH SYSTEM uses special manufactured pins with a rounded tip (ball point), which are avoiding damages to the fabric. So the pins do not have to stay in the waste area of the fabric, but can be used also inside the panels. I.e. matching and the quality is created inside the pieces, where it is required — not somewhere outside in the waste.
- This VEITH Pin Table is available in 2 versions:
- MONO version — 1 workplace
- DUO version — 2 independent workplaces
All these features make this VEITH Pin Table an ideal tool, which can be used in a very flexible and universal way. It is especially designed to deal with the difficult nature of flat knitted fabrics.
Advantages
- Improving the quality
- Spreading and matching in one combined step
- Avoiding single piece cutting
- Reducing the fabric consumption
- Quick setup time
- Flexible system, which allows to adjust needle bar positions even after having started spreading, i.e. it allows to react on too much looseness — or — to react on too much tension (fine tuning)

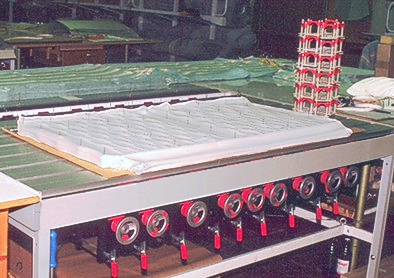

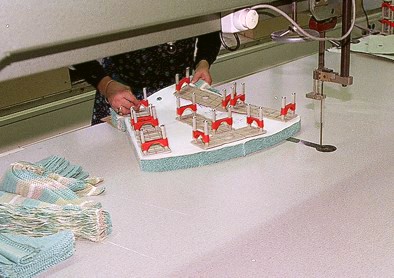

- Immediate fine cutting (net cutting) of multiple plies after spreading — no relaying
Technical Data

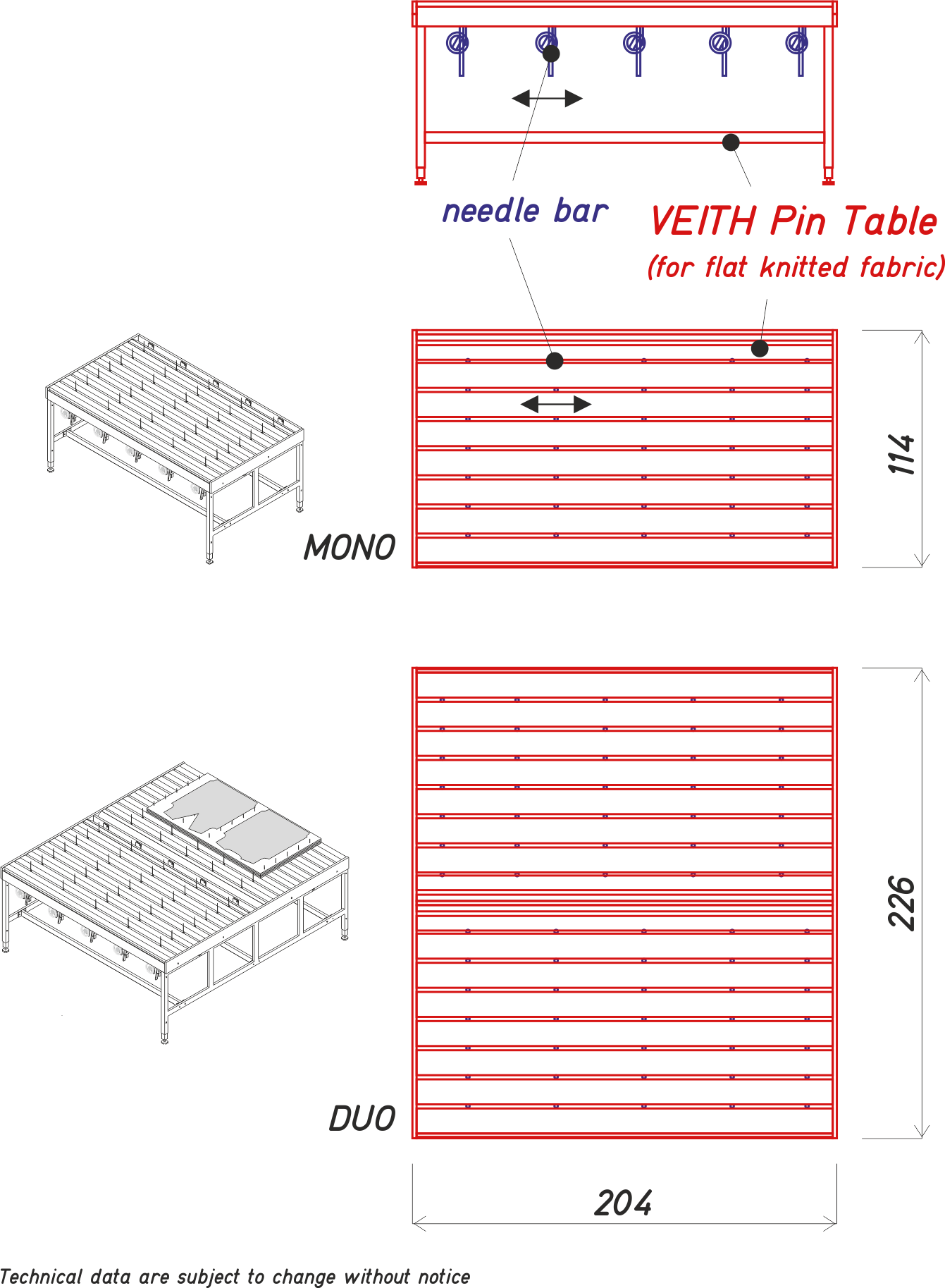

VEITH Pin Table for flat knitted fabric
- MONO system (single workplace):
- length: 204 cm
- width: 114 cm
- height adjustable: 80–90 cm
- DUO system (double workplace):
- length: 204 cm
- width: 226 cm
- height adjustable: 80–90 cm
- Needle diameter is colour coded — all needles with rounded tip (ball point):
- needle diameter 1.8mm (red)
- needle diameter 1.4mm (green)
- needle diameter 1.0mm (blue)
- Needle length — 10cm
Options
- VEITH Needle Plates (STOLK)
- Additional VEITH Needle Bars
Solutions for Special Applications
- VEITH Pin Table for woven fabrics
- VEITH Pin Table for tubular knitted material (open width)
- VEITH MDflex, pinning system for lace
- VEITH Symmetric Matching Device
- VEITH Linear Matching Device
- VEITH PinIT Software — support for the VEITH PIN-TABLEs for woven fabrics as well as for tubular knitted fabrics
- In case of handling multiple cloth rolls with plenty exchanges of cloth rolls for managing split spreading orders (e.g. MTM):VEITH Cloth Roll Magazine with integrated Gantry Spreader
